FU Series 系列

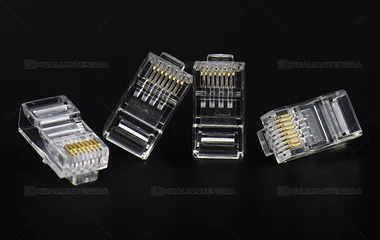

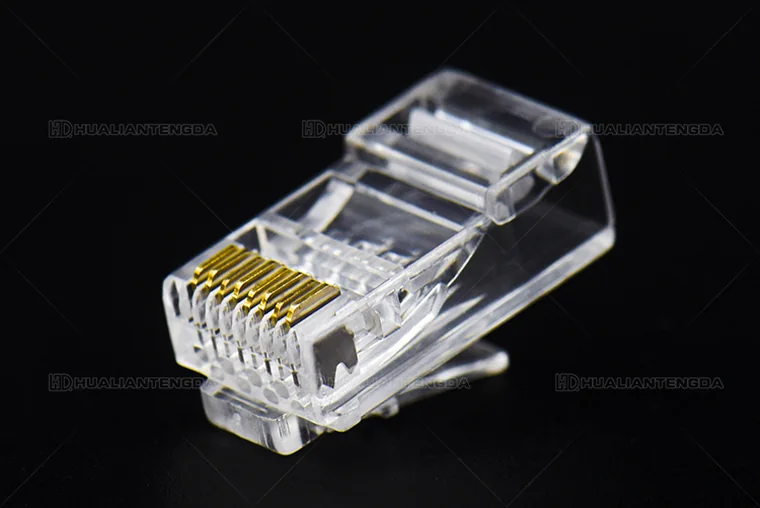

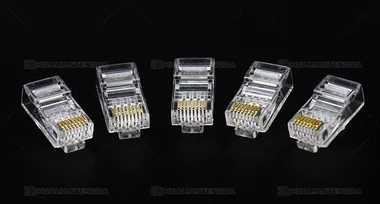

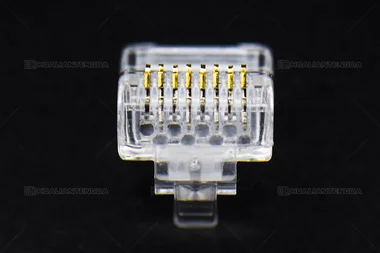

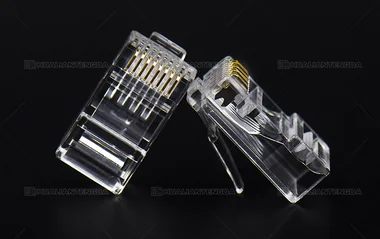

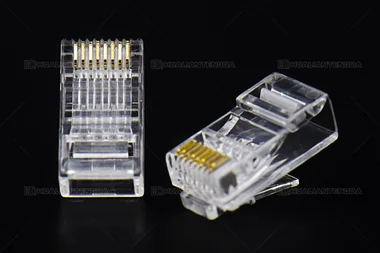

Cat6 UTP RJ45 Plug六类非屏蔽水晶头

Cat6UTP / 非屏蔽Gold plated / 镀金

Offset contact rows and a wider body keep the pairs separated enough for Cat6 near-end crosstalk limits.触片错层排列，本体加宽，满足六类近端串扰要求。

Ask for samples and pricing索取样品与报价

Quote the model below and your target quantity — we reply within one working day.报出下面型号与目标数量，我们1个工作日内回复。

Request a quote索取报价 WhatsApp在线咨询

Standard标准	Cat6, TIA/EIA-568-C.2
Positions / contacts位数 / 触片	8P8C
Contact plating触片镀层	Gold over nickel
Shielding屏蔽	UTP — unshielded
Housing外壳	Transparent polycarbonate
Cable acceptance适用线径	23–24 AWG solid or stranded

Staggered contact rows cut NEXT between adjacent pairs.触片错层，降低相邻线对近端串扰。
Takes the 1.0 mm conductor of Cat6 cable.适配六类线1.0mm线径。
Suits 250 MHz channels.适用于250MHz信道。

Related models 相关型号

Other plugs in this range同系列其他型号

Cat6UTP / 非屏蔽Gold plated / 镀金

Cat6 UTP RJ45 Plug — Two-Piece with Load Bar六类非屏蔽水晶头 · 两件式

A separate load bar holds the four pairs flat and untwisted, which is how you actually hit Cat6 return-loss numbers on site.独立导线架使四对线平整不打绞，现场施工才能稳定达到六类回波损耗指标。

Details 查看详情

Cat6FTP shielded / 屏蔽3 µin gold / 3U镀金

Cat6 FTP Shielded RJ45 Plug — 3 µin Gold六类屏蔽水晶头 · 3U镀金

Full metal shell over a Cat6 body: for 250 MHz runs in cabinets full of drives and inverters.六类本体加全金属外壳，适合变频器、驱动器密集的机柜走线。

Details 查看详情

Cat6UTP / 非屏蔽Gold plated / 镀金

Cat6 UTP RJ45 Plug — Premium-Grade PC六类非屏蔽水晶头 · 特级胶料

Premium polycarbonate body with the Cat6 staggered-contact layout.特级PC胶料本体，采用六类错层触片结构。

Details 查看详情

Tell us what you need — get samples in days告诉我们需求，样品几天内寄出

Send the model, plating, colour and packing quantity. We reply with a quotation and a sample plan, usually within one working day.提供型号、镀金要求、颜色与包装数量，我们通常在1个工作日内回复报价与寄样安排。

Request a quote索取报价 Browse models浏览产品
