Network Cables网络线
Cat5e, Cat6 and Cat6a LAN cable — UTP and FTP, 4 pairs, solid or stranded, in the jacket colours your market asks for. Cut to length, printed and coiled to order.超五类、六类、超六类网线，非屏蔽与屏蔽两种结构，4对实心或绞合导体，护套颜色可定制。可按长度裁切、印字、绕卷。
Typical construction常规结构参数
Values below are our standard build; they are adjusted to the buyer's specification and confirmed on the order confirmation.以下为常规生产参数，可按客户规格调整，最终以订单确认书为准。
Conductor导体 | Solid or stranded bare copper / CCA, 23–26 AWG |
|---|---|
Pairs线对数 | 4 twisted pairs, 568-B colour code |
Shielding屏蔽结构 | UTP · FTP (foil + drain wire) |
Insulation绝缘 | HDPE |
Jacket护套 | PVC or LSZH, RoHS |
Standards标准 | Cat5e 100 MHz · Cat6 250 MHz · Cat6a 500 MHz |
Printing印字 | Custom metre marking and brand print |
Packing包装 | 100 m / 305 m pull box, spool, PVC reel or coil |
Options buyers ask for客户常选定制项
- Jacket colours: blue, black, grey, white, red, yellow, orange, green.护套颜色：蓝、黑、灰、白、红、黄、橙、绿。
- Foil and drain-wire FTP variants for noisy plants.屏蔽款含铝箔与接地线，适合干扰大的机房。
- Custom reel length, print and pull-box branding.可定制米标、印字与包装盒品牌。
- Fluke-style channel test reports on request.可提供信道测试报告。
Construction & shielding 结构与屏蔽
Construction & shielding结构与屏蔽
Cut-away shots of our own reels: pair lay-up, foil tape, drain wire and braid.实拍线材截面：线对绞距、铝箔、接地线与编织层。
Tinned braid over foil编织层包覆铝箔

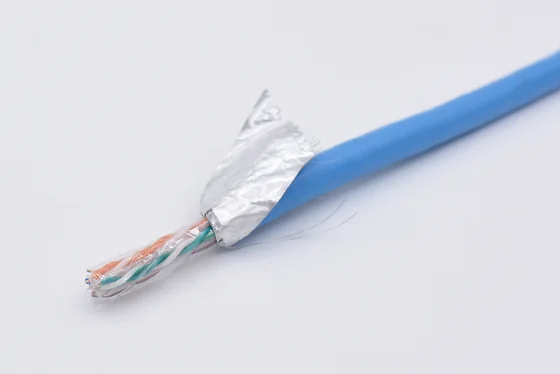

Foil tape and drain wire, peeled back剥开后可见铝箔与接地线

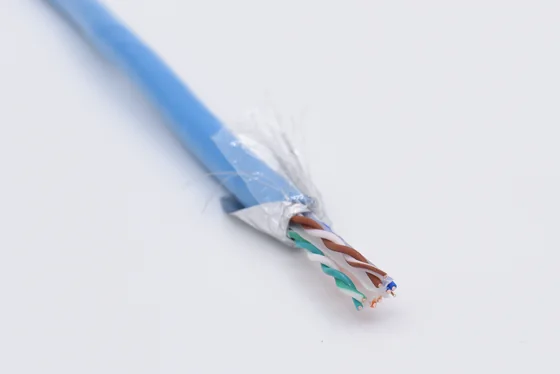

Foil wrap with drain wire铝箔包裹 + 接地线

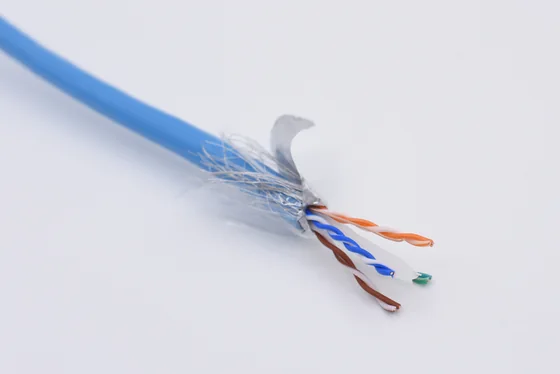

Shielded pairs after stripping剥皮后的屏蔽线对

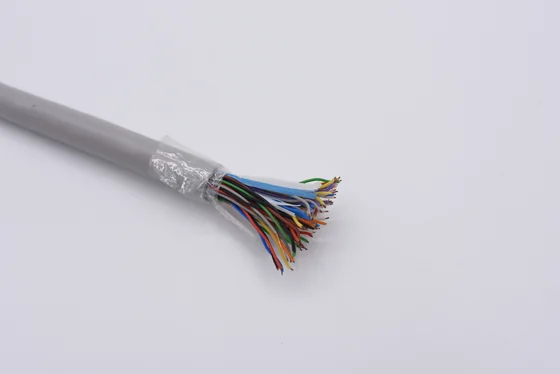

Foil and drain wire on grey jacket灰色护套内的铝箔与接地线
Shielded cable, cut end屏蔽线截面
White shielded cable, foil visible白色屏蔽线，可见铝箔
Four pairs fanned out四对线扇形展开

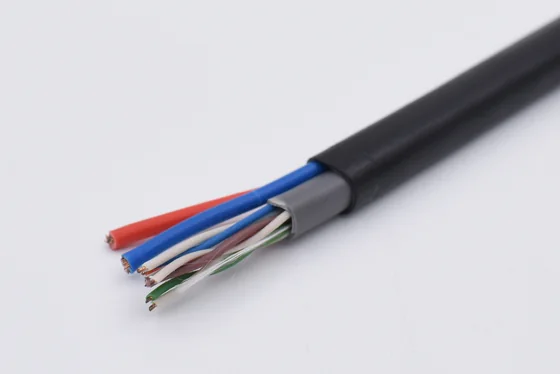

Pairs plus drain wire线对与接地线

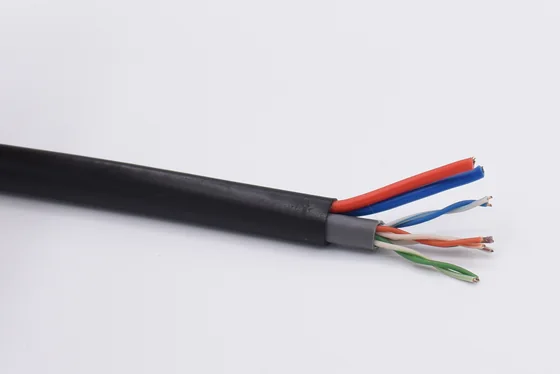

Cut end, red and blue pairs截面，可见红蓝线对

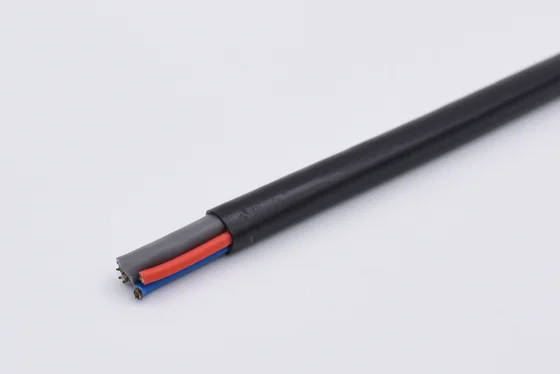

Black jacket, pairs exposed黑色护套剥开后的线对

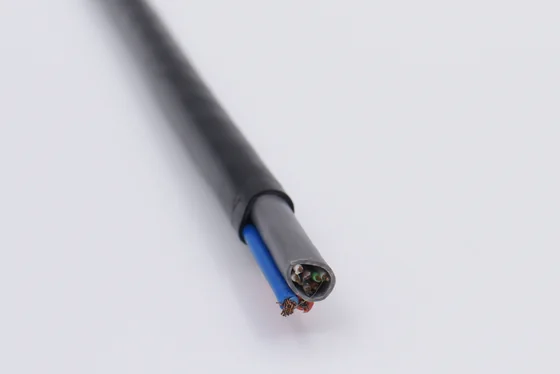

Inner core after jacket removal去除护套后的内芯

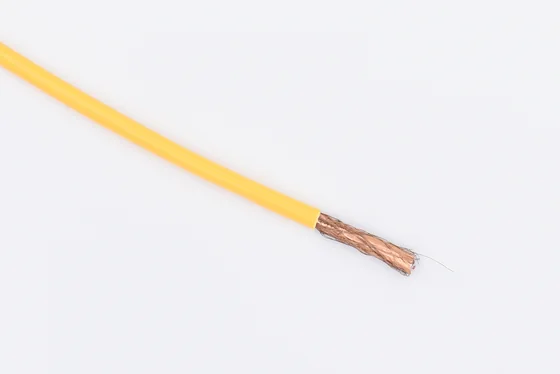

Stranded copper conductor绞合铜导体
Jacket wall thickness护套壁厚

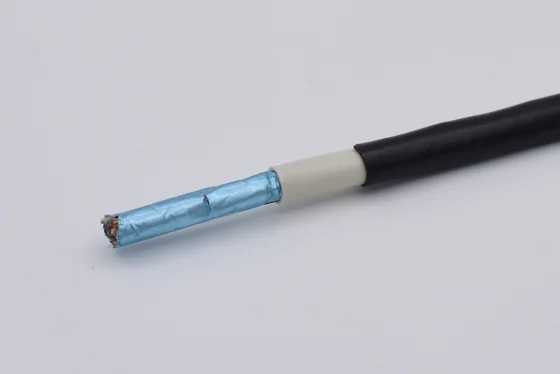

Foil layer under the jacket护套内的铝箔层

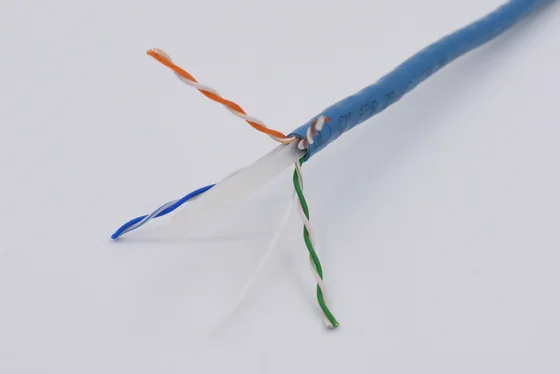

Pairs stripped for termination剥线后的线对

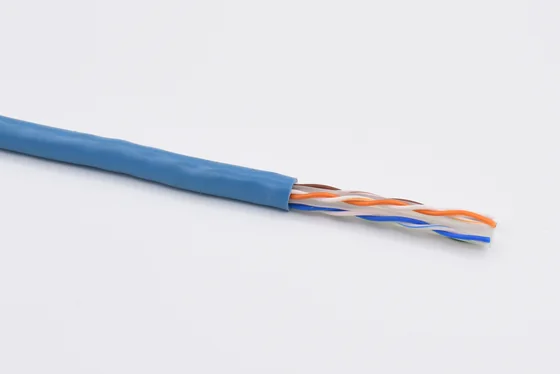

Blue jacket, cut end蓝色护套截面

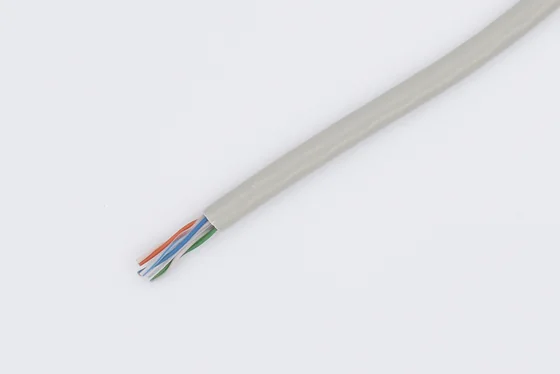

Slim jacket, four pairs细护套，四对线
Jacket colours 护套颜色
Jacket colours护套颜色
Same cable, different jackets. Other colours are matched to your artwork.同款线材不同护套颜色，其他颜色可按客户色卡定制。
Blue蓝色

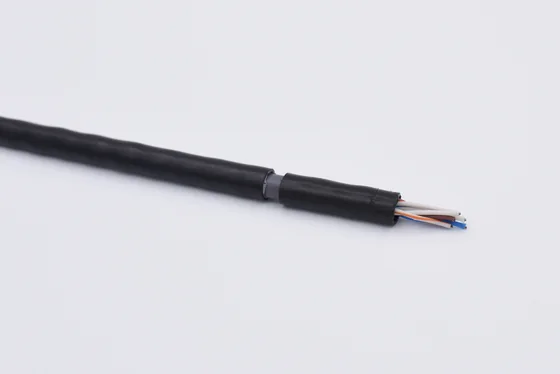

Black黑色

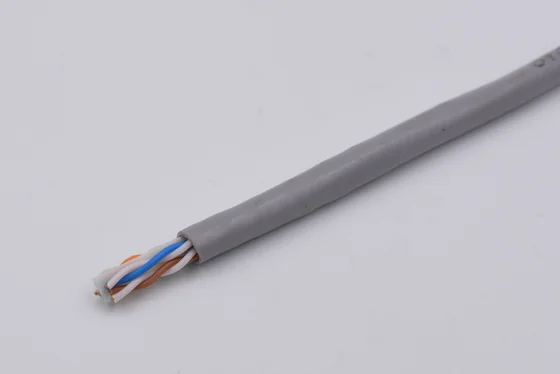

Grey灰色
White (shielded)白色（屏蔽款）

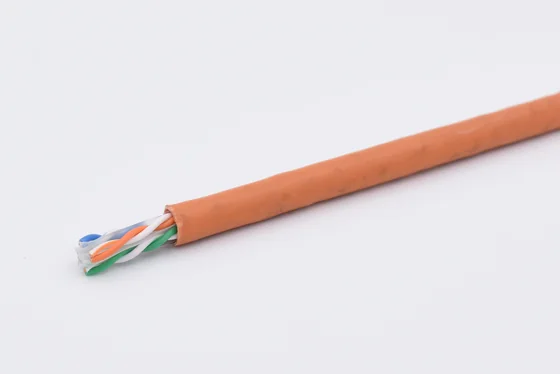

Orange橙色
Yellow黄色
Red红色
Tell us what you need — get samples in days告诉我们需求，样品几天内寄出
Send the model, plating, colour and packing quantity. We reply with a quotation and a sample plan, usually within one working day.提供型号、镀金要求、颜色与包装数量，我们通常在1个工作日内回复报价与寄样安排。
